單機設備

Stand alone equipment

首頁 > 單機設備 > High speed printer

High speed printer

設備描述 working principle technical specification 設備特點成品展示

設備描述

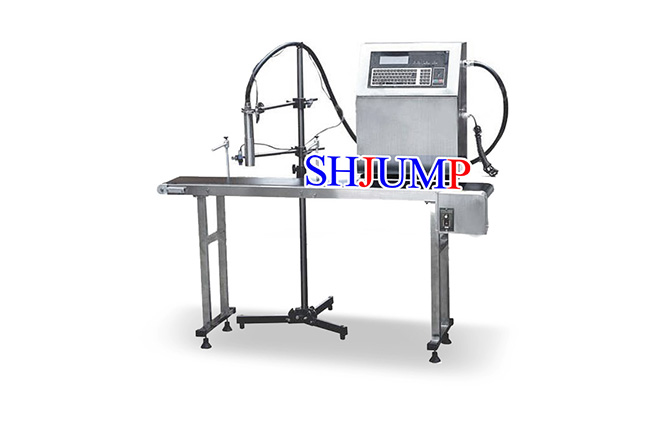

High speed printer

Inkjet printer is a software controlled, using a non-contact way of marking equipment on the product.

working principle

Inkjet code machine is the use of charged ink particles, by the principle of high voltage electric field deflection, in a variety of objects on the surface of the printing pattern text and digital, is a set of mechanical and electrical integration of high-tech products. Products are widely used in food industry, cosmetics industry, pharmaceutical industry, automobile and other parts processing industry, wire and cable industry, aluminum pipe industry, tobacco and wine industry and other fields. It can be used for printing production date, batch number, bar code, trademark pattern, security mark and Chinese characters, which is a powerful equipment for implementing health law and promoting packaging modernization.

technical specification

Product model

Model JP - PM - 017

Main engine height width thickness weight

555mm 300mm 320mm 26kg(net weight)

Nozzle height width thickness weight

43 mm 185 mm 45 mm 1.8 kg

Nozzle can print line number aperture ink frequency

4 70μm white ink 88kHZ

The case is made of stainless steel IP54

Case door is 300 mm

Protection class IP54

Chassis material stainless steel

Noise level <60dB (A)

The turning radius of the nozzle cover is 100mm

Installation direction No special requirements

Can I change it quickly yes

The distance between the nozzle and the product surface is 2mm-25mm

Bending radius of pipe 200mm(standard)

The diameter of the pipe is 20mm

Tube length 2500mm (standard)

Scope of power supply

Power supply voltage 220V,50HZ or 110V,60HZ

Power 120 w

Ambient temperature 5℃-40℃

Ambient humidity A maximum of 90% relative humidity of the air, without condensation

設備特點

Very fast printing speed: the fastest printing can be 1950 characters/second or 45 m/min

Print line number adjustable: print line number can be adjusted from 1 to 14, and can be arbitrarily matched

Adjustable character size: the font width and height can be adjusted within a suitable range, and the font can also be arbitrarily bold

Programming fast and convenient: through the computer or editor machine input required numbers, words, patterns and line number information, modify the printed information, just press the number of keys can be completed

Wide range of applications: can match any production line. Can be in plastic, glass, paper, wood, rubber, metal and other materials, different shapes of the surface of the jet printing trademark, date of delivery, instructions, batch number, etc

High degree of automation: automatic implementation date. Batch and number change, realize the printing process of unmanned operation

Clear and durable handwriting: computer controlled, accurate printing of required numbers and words. Patterns and bar codes

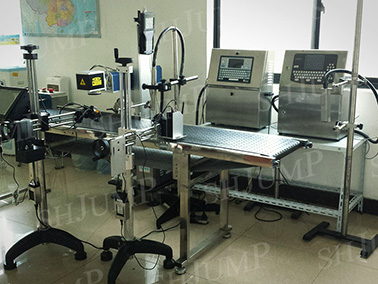

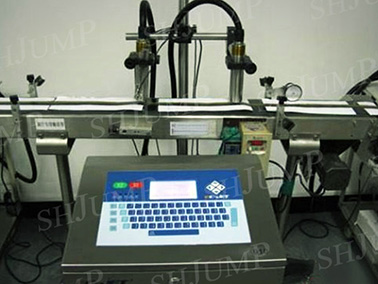

成品展示
